Zed Attack Proxy (ZAP) is a free, open-source penetration testing tool being maintained under the umbrella of the Open Web Application Security Project (OWASP). ZAP is designed specifically for testing web applications and is both flexible and extensible.
At its core, ZAP is
what is known as a “man-in-the-middle proxy.” It stands between the tester’s
browser and the web application so that it can intercept and inspect messages
sent between browser and web application, modify the contents if needed, and then
forward those packets on to the destination. It can be used as a stand-alone
application, and as a daemon process.
If there is another network proxy already in use, as in many corporate environments, ZAP can be configured to connect to that proxy.
ZAP provides
functionality for a range of skill levels – from developers, to testers new to
security testing, to security testing specialists. ZAP has versions for each
major OS and Docker, so you are not tied to a single OS. Additional
functionality is freely available from a variety of add-ons in the ZAP
Marketplace, accessible from within the ZAP client.
Because ZAP is
open-source, the source code can be examined to see exactly how the
functionality is implemented. Anyone can volunteer to work on ZAP, fix bugs,
add features, create pull requests to pull fixes into the project, and author
add-ons to support specialized situations.
As with most open
source projects, donations are welcome to help with costs for the projects. You
can find a donate button on the owasp.org page for ZAP at https://owasp.org/www-project-zap/.
2: Zap Installation:
The first thing to do is install ZAP on the system you intend to
perform pentesting on. Download the appropriate installer from the Download page.
Note
that ZAP requires Java 11+ in order to run. The macOS installer includes an
appropriate version of Java but you must install Java 11+ separately for
Windows, Linux, and Cross-Platform versions. The Docker versions do not require
you to install Java.
Once
the installation is complete, launch ZAP and read the license terms.
Click Agree if
you accept the terms, and ZAP will finish installing, then ZAP will
automatically start.
macOS
OWASP
ZAP is currently not a verified developer with Apple. On macOS, you will see a
message like:
“OWASP
ZAP.app” cannot be opened because the developer cannot be verified.
To
circumvent this warning, you would need to go to System Preferences > Security & Privacy at
the bottom of the dialog. You will see a message saying that “OWASP ZAP” was
blocked. Next to it, if you trust the downloaded installer, you can click Open anyway.
3: Deep Dive into the ZAP:
The
ZAP Desktop UI is composed of the following elements:
- Menu Bar – Provides access
to many of the automated and manual tools.
- Toolbar – Includes buttons
which provide easy access to most commonly used features.
- Tree Window – Displays the
Sites tree and the Scripts tree.
- Workspace Window – Displays
requests, responses, and scripts and allows you to edit them.
- Information Window – Displays details
of the automated and manual tools.
- Footer – Displays a
summary of the alerts found and the status of the main automated tools.
While
using ZAP, you can click Help on
the Menu Bar or press F1 to access context-sensitive help from the ZAP Desktop
User Guide. It is also available online.
For
more information about the UI, see ZAP
UI Overview in the ZAP online documentation.
ZAP
also supports a powerful API and command line functionality, both of which are beyond
the scope of this guide.
IMPORTANT: You should
only use ZAP to attack an application you have permission to test with an
active attack. Because this is a simulation that acts like a real attack,
actual damage can be done to a site’s functionality, data, etc. If you are
worried about using ZAP, you can prevent it from causing harm (though ZAP’s
functionality will be significantly reduced) by switching to safe mode.
To
switch ZAP to safe mode, click the arrow on the mode dropdown on the main
toolbar to expand the dropdown list and select Safe Mode.
Running
an Automated Scan
The
easiest way to start using ZAP is via the Quick Start tab. Quick Start is a ZAP
add-on that is included automatically when you installed ZAP.

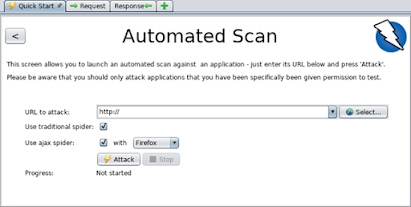

To
run a Quick Start Automated Scan :
- Start ZAP and click
the Quick Start tab
of the Workspace Window.
- Click the large
Automated Scan button.
- In the URL to attack text
box, enter the full URL of the web application you want to attack.
- Click the Attack
ZAP
will proceed to crawl the web application with its spider and passively scan
each page it finds. Then ZAP will use the active scanner to attack all of the
discovered pages, functionality, and parameters.
ZAP
provides 2 spiders for crawling web applications, you can use either or both of
them from this screen.
The
traditional ZAP spider which discovers links by examining the HTML in responses
from the web application. This spider is fast, but it is not always effective
when exploring an AJAX web application that generates links using JavaScript.
For
AJAX applications, ZAP’s AJAX spider is likely to be more effective. This
spider explores the web application by invoking browsers which then follow the
links that have been generated. The AJAX spider is slower than the traditional
spider and requires additional configuration for use in a “headless”
environment.
ZAP
will passively scan all of the requests and responses proxied through it. So
far ZAP has only carried out passive scans of your web application. Passive
scanning does not change responses in any way and is considered safe. Scanning
is also performed in a background thread to not slow down exploration. Passive
scanning is good at finding some vulnerabilities and as a way to get a feel for
the basic security state of a web application and locate where more
investigation may be warranted.
Active
scanning, however, attempts to find other vulnerabilities by using known
attacks against the selected targets. Active scanning is a real attack on those
targets and can put the targets at risk, so do not use active scanning against
targets you do not have permission to test.
Interpret
Your Test Results
As
ZAP spiders your web application, it constructs a map of your web applications’
pages and the resources used to render those pages. Then it records the
requests and responses sent to each page and creates alerts if there is
something potentially wrong with a request or response.
See
Explored Pages
To
examine a tree view of the explored pages, click the Sites tab in the
Tree Window. You can expand the nodes to see the individual URLs accessed.
View
Alerts and Alert Details
The
left-hand side of the Footer contains a count of the Alerts found during your
test, broken out into risk categories. These risk categories are:
To
view the alerts created during your test:
- Click the Alerts tab in
the Information Window.
- Click each alert
displayed in that window to display the URL and the vulnerability detected
in the right side of the Information Window.
- In the Workspace
Windows, click the Response tab
to see the contents of the header and body of the response. The part of
the response that generated the alert will be highlighted.
Exploring
an Application Manually
The
passive scanning and automated attack functionality is a great way to begin a
vulnerability assessment of your web application but it has some limitations.
Among these are:
- Any pages protected by a
login page are not discoverable during a passive scan because, unless
you’ve configured ZAP’s authentication functionality, ZAP will not handle
the required authentication.
- You don’t have a lot of
control over the sequence of exploration in a passive scan or the types of
attacks carried out in an automated attack. ZAP does provide many
additional options for exploration and attacks outside of passive
scanning.
Spiders
are a great way to explore your basic site, but they should be combined with
manual exploration to be more effective. Spiders, for example, will only enter
basic default data into forms in your web application but a user can enter more
relevant information which can, in turn, expose more of the web application to
ZAP. This is especially true with things like registration forms where a valid
email address is required. The spider may enter a random string, which will
cause an error. A user will be able to react to that error and supply a
correctly formatted string, which may cause more of the application to be
exposed when the form is submitted and accepted.
You
should explore all of your web application with a browser proxying through ZAP.
As you do this, ZAP passively scans all the requests and responses made during
your exploration for vulnerabilities, continues to build the site tree, and
records alerts for potential vulnerabilities found during the exploration.
It
is important to have ZAP explore each page of your web application, whether
linked to another page or not, for vulnerabilities. Obscurity is not security,
and hidden pages sometimes go live without warning or notice. So be as thorough
as you can when exploring your site.
You
can quickly and easily launch browsers that are pre-configured to proxy through
ZAP via the Quick Start tab. Browsers launched in this way will also ignore any
certificate validation warnings that would otherwise be reported.
To
Manually Explore your application:
- Start ZAP and click
the Quick Start tab
of the Workspace Window.
- Click the large Manual
Explore button.
- In the URL to explore text
box, enter the full URL of the web application you want to explore.
- Select the browser you
would like to use
- Click the Launch Browser
This
option will launch any of the most common browsers that you have installed with
new profiles.
If
you would like to use any of your browsers with an existing profile, for
example with other browser add-ons installed, then you will need to manually
configure your browser to proxy via ZAP and import and trust the ZAP Root CA
Certificate. See the ZAP Desktop User Guide for more details.
By
default the ZAP Heads Up Display (HUD) will be enabled. Unchecking the relevant
option on this screen before launching a browser will disable the HUD.
4:
DeeP Dive Into ZAP Part2:
The ZAP Desktop UI
is composed of the following elements:
Menu Bar – Provides
access to many of the automated and manual tools.
Toolbar – Includes
buttons which provide easy access to most commonly used features.
Tree Window –
Displays the Sites tree and the Scripts tree.
Workspace Window –
Displays requests, responses, and scripts and allows you to edit them.
Information Window –
Displays details of the automated and manual tools.
Footer – Displays a
summary of the alerts found and the status of the main automated tools.
While using ZAP, you
can click Help on the Menu Bar or press F1 to access context-sensitive help
from the ZAP Desktop User Guide. It is also available online.
For more information
about the UI, see ZAP UI Overview in the ZAP online documentation.
ZAP also supports a
powerful API and command line functionality, both of which are beyond the scope
of this guide.
IMPORTANT: You
should only use ZAP to attack an application you have permission to test with
an active attack. Because this is a simulation that acts like a real attack,
actual damage can be done to a site’s functionality, data, etc. If you are
worried about using ZAP, you can prevent it from causing harm (though ZAP’s
functionality will be significantly reduced) by switching to safe mode.
To switch ZAP to
safe mode, click the arrow on the mode dropdown on the main toolbar to expand
the dropdown list and select Safe Mode.
Running an Automated
Scan
The easiest way to
start using ZAP is via the Quick Start tab. Quick Start is a ZAP add-on that is
included automatically when you installed ZAP.
To run a Quick Start
Automated Scan :
Start ZAP and click
the Quick Start tab of the Workspace Window.
Click the large
Automated Scan button.
In the URL to attack
text box, enter the full URL of the web application you want to attack.
Click the Attack
ZAP will proceed to
crawl the web application with its spider and passively scan each page it
finds. Then ZAP will use the active scanner to attack all of the discovered
pages, functionality, and parameters.
ZAP provides 2
spiders for crawling web applications, you can use either or both of them from
this screen.
The traditional ZAP
spider which discovers links by examining the HTML in responses from the web
application. This spider is fast, but it is not always effective when exploring
an AJAX web application that generates links using JavaScript.
For AJAX
applications, ZAP’s AJAX spider is likely to be more effective. This spider
explores the web application by invoking browsers which then follow the links
that have been generated. The AJAX spider is slower than the traditional spider
and requires additional configuration for use in a “headless” environment.
ZAP will passively
scan all of the requests and responses proxied through it. So far ZAP has only
carried out passive scans of your web application. Passive scanning does not
change responses in any way and is considered safe. Scanning is also performed in
a background thread to not slow down exploration. Passive scanning is good at
finding some vulnerabilities and as a way to get a feel for the basic security
state of a web application and locate where more investigation may be
warranted.
Active scanning,
however, attempts to find other vulnerabilities by using known attacks against
the selected targets. Active scanning is a real attack on those targets and can
put the targets at risk, so do not use active scanning against targets you do not
have permission to test.
Interpret Your Test
Results
As ZAP spiders your
web application, it constructs a map of your web applications’ pages and the
resources used to render those pages. Then it records the requests and
responses sent to each page and creates alerts if there is something
potentially wrong with a request or response.
See Explored Pages
To examine a tree
view of the explored pages, click the Sites tab in the Tree Window. You can
expand the nodes to see the individual URLs accessed.
View Alerts and
Alert Details
The left-hand side
of the Footer contains a count of the Alerts found during your test, broken out
into risk categories. These risk categories are:
To view the alerts
created during your test:
Click the Alerts tab
in the Information Window.
Click each alert
displayed in that window to display the URL and the vulnerability detected in
the right side of the Information Window.
In the Workspace
Windows, click the Response tab to see the contents of the header and body of
the response. The part of the response that generated the alert will be
highlighted.
Exploring an
Application Manually
The passive scanning
and automated attack functionality is a great way to begin a vulnerability
assessment of your web application but it has some limitations. Among these
are:
Any pages protected
by a login page are not discoverable during a passive scan because, unless
you’ve configured ZAP’s authentication functionality, ZAP will not handle the
required authentication.
You don’t have a lot
of control over the sequence of exploration in a passive scan or the types of
attacks carried out in an automated attack. ZAP does provide many additional
options for exploration and attacks outside of passive scanning.
Spiders are a great
way to explore your basic site, but they should be combined with manual
exploration to be more effective. Spiders, for example, will only enter basic
default data into forms in your web application but a user can enter more
relevant information which can, in turn, expose more of the web application to
ZAP. This is especially true with things like registration forms where a valid
email address is required. The spider may enter a random string, which will
cause an error. A user will be able to react to that error and supply a
correctly formatted string, which may cause more of the application to be
exposed when the form is submitted and accepted.
You should explore
all of your web application with a browser proxying through ZAP. As you do
this, ZAP passively scans all the requests and responses made during your
exploration for vulnerabilities, continues to build the site tree, and records
alerts for potential vulnerabilities found during the exploration.
It is important to
have ZAP explore each page of your web application, whether linked to another
page or not, for vulnerabilities. Obscurity is not security, and hidden pages
sometimes go live without warning or notice. So be as thorough as you can when exploring
your site.
You can quickly and
easily launch browsers that are pre-configured to proxy through ZAP via the
Quick Start tab. Browsers launched in this way will also ignore any certificate
validation warnings that would otherwise be reported.
To Manually Explore
your application:
Start ZAP and click
the Quick Start tab of the Workspace Window.
Click the large
Manual Explore button.
In the URL to
explore text box, enter the full URL of the web application you want to
explore.
Select the browser
you would like to use
Click the Launch
Browser
This option will
launch any of the most common browsers that you have installed with new
profiles.
If you would like to
use any of your browsers with an existing profile, for example with other
browser add-ons installed, then you will need to manually configure your
browser to proxy via ZAP and import and trust the ZAP Root CA Certificate. See
the ZAP Desktop User Guide for more details.
By default the ZAP
Heads Up Display (HUD) will be enabled. Unchecking the relevant option on this
screen before launching a browser will disable the HUD.
